Processing Overview

Shenzhen Geyaxin Electronics Co., Ltd. is a company that integrates R&D, design and OEM/ODM. PCBA production base was established in 2007. It is located in Anle Industrial Park, No. 43, Bao'an District, Shenzhen City. After continuous innovation and development, it has a modern standard factory building of 2,000 square meters. It has more than 200 employees who are both talented and talented. Scientific, advanced quality management system, the company strives for excellence, has passed ISO9001: 2008 GB/T 19001-2008 quality management system certification.

The company's advanced equipment, with four high-speed placement machines imported from Japan, at the same time supporting the plug-in, post-welding, testing, maintenance and assembly of one-stop production equipment and technical personnel, reaching production capacity of more than 5 million points. At present, it mainly produces various types of industrial automation equipment, such as motherboards, industrial production equipment control panels, industrial robots, automotive electronic control panels, industrial printing and coding equipment, servo control panels, CNC machine tools, communications and electronics products and other mass production. It can meet the production and processing needs of R&D and manufacturing customers in Shenzhen, Zhujiang, and even the whole country.

The SMT department specializes in the production of a prototype production line. Professional patch, welding, and repair equipment and full-time technical personnel are available to meet the sample requirements of various R&D and development companies. The company strictly controls the quality. Under the concept of development that takes quality as a fundamental and customer service as its tenet, it takes a technical and professional production road, creating a unique production and service brand of Gehsin, which has been recognized and praised by the electronics industry in various regions. By the majority of customers trust and praise.


Processing capacity

Computer peripheral series: Tablet PC, Bluetooth module, Bluetooth headset, mobile power board, card speakers, U disk, network card, surveillance cameras, etc.;

Household Appliances Series: High-definition player, digital camera, high-frequency head plate, repeater board, car audio motherboard / control board;

Wireless communication series: wireless network card, mobile phone board, car GPS / driving recorder board, mobile phone battery protection board, intercom board, etc.

LED lighting: LED drive power supply, LED light bar, LED light strip;


Manufacturing processes

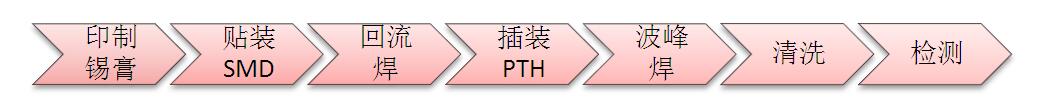

Single-sided mixing assembly

All components, including surface mounts and inserts, are on one side of the PCB. We use printed solder paste, placed components, and reflow soldering to complete the surface mounting process; in turn, hand-inserted or white-moving cartridges are used to secure the inserts and then soldered into the through-hole inserts.

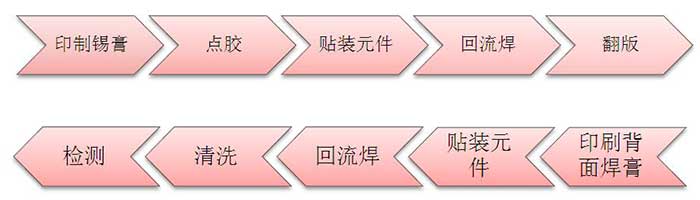

Double-sided surface assembly

The two-sided SMT process uses surface mounted components and uses two-sided reflow soldering.

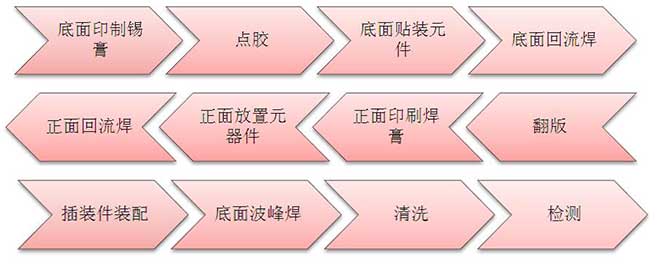

Double-sided mixing assembly


Processing fees

The process charges are transparently billed according to the number of solder joints. The more the number of solder joints, the lower the price of the unit solder joint, the greater the number of processed parts and the lower the single-piece processing price. The details of the charging standards for solder joints are shown in the following table.

There are certain differences in the difficulty of processing involved in different products and the consumption of other consumables. Therefore, there is a certain difference in charges for the processing of special devices. The following is a reference for the processing charges of some common types of products.


Processing case

Business scope:
1. A variety of electronic products processing, including: SMT chip. DIP welding, functional testing, tablet PC assembly and other mass production.
2. R & D company's new product model processing, trial production, small batch production. (including artificial hand patch, hand soldering)
3. A variety of IC (BGA) beads. Dismantle. Welding processing.
4. Undertake ODM (substitution agency) processing business of R&D company's new products.
